LASER DISTANCE SENSORS

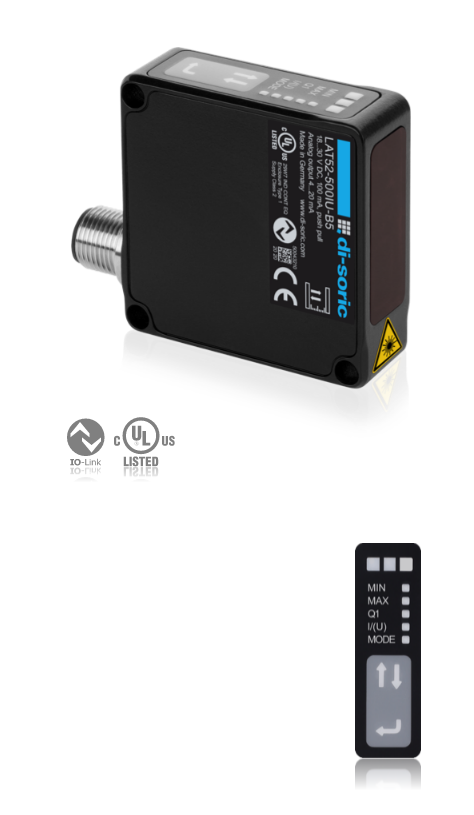

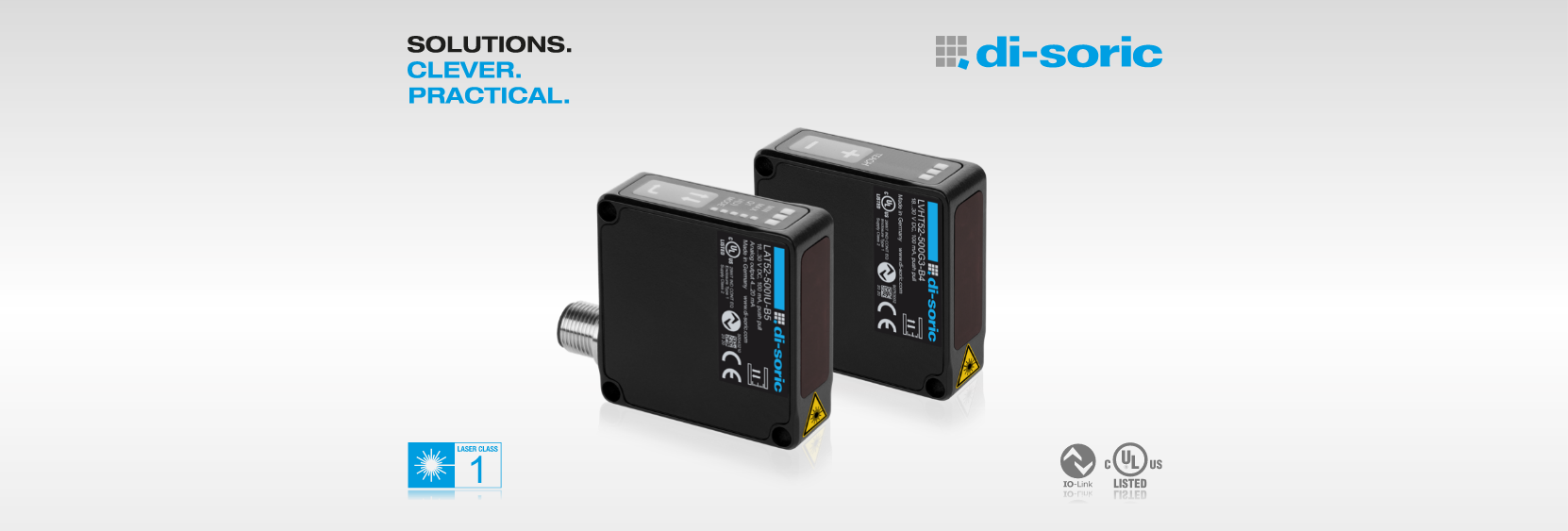

LAT-52 / LVHT-52 COMPACT
WITH IO-LINK

FAST AND EXTREMELY PRECISE:

PRECISE MEASUREMENT WITH LAT-52

FOR MEASURING APPLICATIONS.
3 DIFFERENT MEASURING RANGES IN IDENTICAL DESIGN

For decades, di-soric has been developing distance sensors that set new standards. And now, di-soric is introducing the laser distance sensors with innovative dual operating concept - either via IO-Link or via manual adjustment using an operating panel. With IO-Link, specific settings can be configured, stored in the IO-Link master and reloaded as needed - even with a swapped device.

3 MEASURING RANGES AVAILABLE:

High resolution: 30 – 80 mm / 0.01 mm resolution*

Short distance: 50 – 200 mm / 0.01 mm resolution*

Universal: 50 – 500 mm / 0.1 mm resolution*

READY-TO-RUN
3 PRECONFIGURED SENSOR MODES

Standard: for a wide variety of applications

Power: For dark objects

Speed: quick measurement

IO-LINK

Digital, loss-free transmission of measured values

Diagnostic functions

Identification

Localization function

Average and median filter

IO-Link relative measurement

PRECISE, FAST AND SAFE

thanks to perfectly coordinated components that make optimal use of the triangulation method and thanks to use of a laser from the hazard-free Laser Class 1 according to EN 60825-1

VERY EASY OPERATION

Large, easy-to-operate keys

Important functions can be operated intuitively

3 readily visible diagnostic LEDs

Teach analog output

Teach switching output

NO/NC changeover

Current/voltage switchable

Selection of sensor mode

MORE FLEXIBLE, FASTER, MORE PRECISE, SIMPLER – 3 DIFFERENT MEASURING RANGES WITH SMALL BLIND ZONES

The three measuring ranges in the variants High-resolution, Short distance and Universal allow for implementation of an extremely wide variety of applications. Due to the small blind ranges, the LAT-52 can be integrated into machines with little installation space Three selectable sensor modes and additional fi lters ensure precise and optimal measurement results.

LAT-52 APPLICATIONS

Sheet transport using robots
LAT52-500

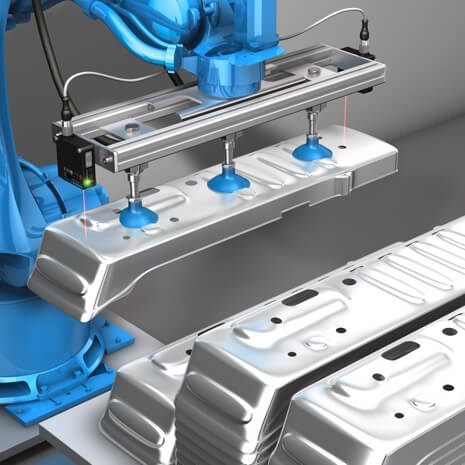

The LAT52-500 units control the suction gripper of the robot The speed is adapted to the working distance with simultaneous collision avoidance, and thus the entire gripping process is time-optimized.

Position tappet
LAT52-80

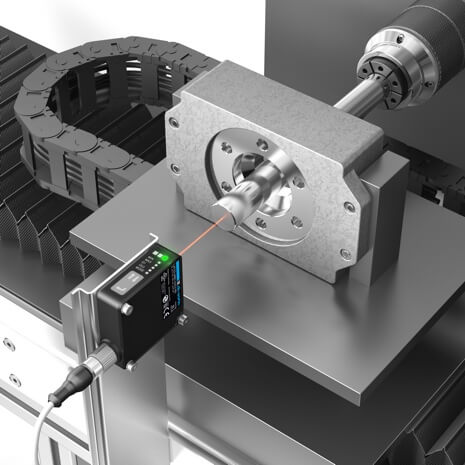

In an assembly process, the impression depth must be determined with high precision. The high-resolution variant LAT52-80 with a measuring range starting at 30 mm ensures space-saving installation.

THE SWITCHING ALTERNATIVE:

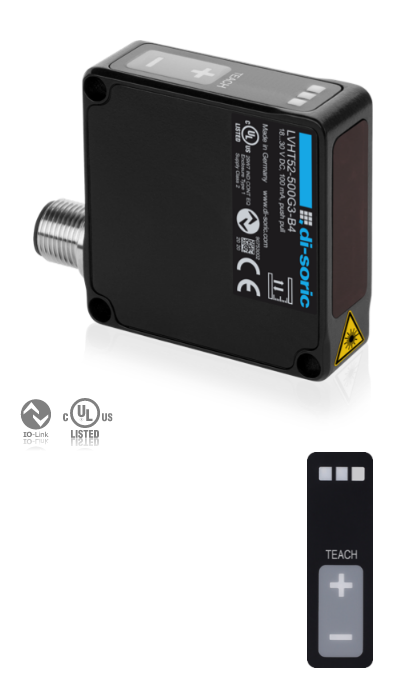

PRECISE DETECTION WITH LVHT-52

THE LASER LIGHT BUTTON WITH WINDOW FUNCTION
AND A WORKING RANGE OF 50 – 500 MM

The LVHT-52 features a large detection range and a precisely adjustable window mode. This makes it a very e cient solution for applications that are meant to have a high degree of precision in switching but not measuring. Its extremely intuitive adjustment via the plus/minus keys ensures fast commissioning.

ROBUST DESIGN

Metal plug connector

Powder-coated die-cast zinc housing with IP67

Compatible with LVHT-51 and standard fastening options

PUSH-PULL OUTPUT

pnp or npn function in one device

PRECISE AND SAFE

Perfectly coordinated components

Safe thanks to laser class 1

IO-LINK

Switching point and hysteresis can be set down to the millimeter

Diagnostic functions

Identification

Localization function

VERY EASY OPERATION

Large, easy-to-operate keys

Important functions can be operated intuitively

3 diagnostic LEDs

Teach object detection

Teach windows

NO/NC changeover

Adaptation of switching point

LVHT-52 APPLICATION

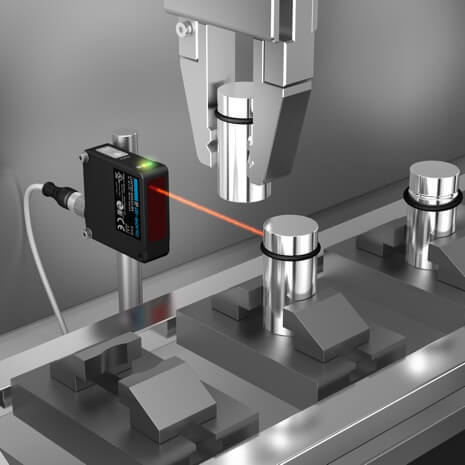

Presence check for O-ring
LVHT-52
The LVHT-52 is versatile thanks its large detection range and safely detects the presence of an O-ring via the switching point precisely taught with the plus/minus keys.
