THE NEXT GENERATION:
SIGNAL LIGHTING AND SIGNAL LIGHTS
Optimal display of system states through impressive brightness and greatest color brilliance
With IO-Link, intelligent signal lighting is available that can be adapted to individual requirements and which display machine status optimally. The Segment and the Level modes offer many new options.
Signal lighting and signal lights can be configured during operation by means of IO-Link (process data) – light functions such as color, individual brightnesses and the flashing of individual segments can be freely adjusted. Even without IO-Link, it can be used immediately out of the box thanks to eight color presets that can be triggered (predefined or user-defined).
SIGNAL LIGHTINGS:
SB-RGB Multi-Segment IOL Signal lighting
SIGNAL LIGHTS:
SBP-RGB 1-Segment IOL Signal lights

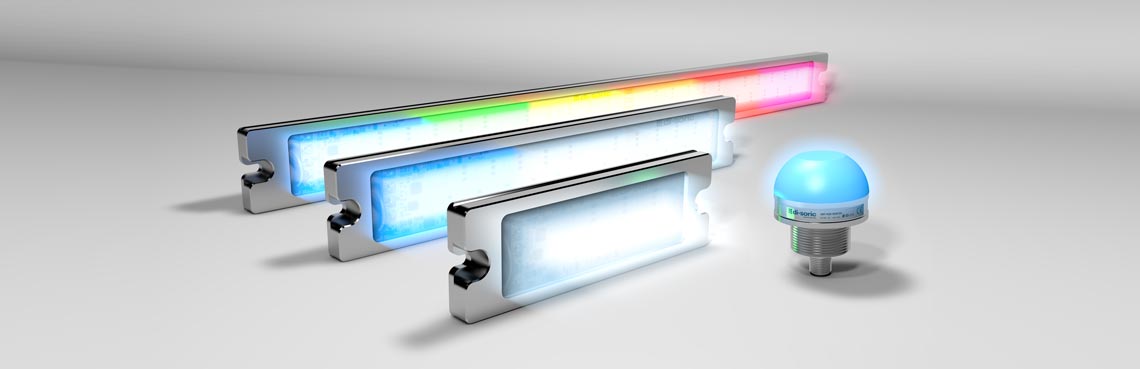

Signal lighting and signal lights
MULTI-SEGMENT IOL SIGNAL LIGHTING
SB-RGB
With its pure color signal lighting, the SB-RGB clearly displays the status of machines or machine segments in vibrant, unmistakable colors, even at great distances.
Ready for use right away – and can be customized to suit every requirement.

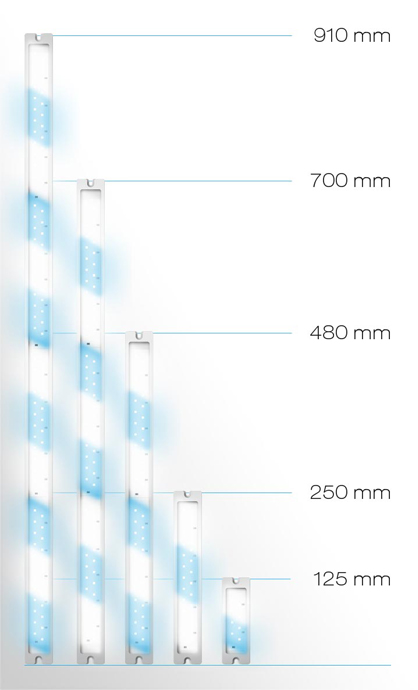

Available lenghts and segments
Highlights
Segment and Level mode (IO-Link process data)
Freely configurable light functions via IO-Link
Large illuminated area for optimal display of machine status
Up to 8 color displays (predefined and user-defined via IO-Link) are possible through 3 digital trigger inputs
Machine status visible over great distances
IO-Link features
Easy configuration of individual functions during operation via IO-Link process data:
Segment and Level mode
Virtually infinite number of possible colors
Individual brightness levels
Different flashing patterns can be assigned to individual colors
Reduced costs
Just one device for every requirement
So less inventory is needed
SB-RGB
FLEXIBILITY THROUGH 3 OPERATING MODES
Segment mode
In Segment mode, individual segments can be activated via IO-Link, which enables countless color configurations. Colors can be adjusted for each segment on the fly via IO-Link, the intensity of 10-100% can be varied or blinking or flashing behavior can be adjusted.
Application
Level mode
In Level mode, there is the option to define a background color (inactive segment) via IO-Link process data, and customers can adjust these, for example, as a corporate identity color, and the fill level is displayed with the active segments (predefined color selection possible).
Application
External trigger mode
In External trigger mode, 8 preset color and light configurations (factory settings or freely defined in advance) can be called up via 3 digital trigger inputs – even without IO-Link.
Application 1
|
Application 2
Signal lighting and signal lights
1-SEGMENT IOL SIGNAL LIGHTS

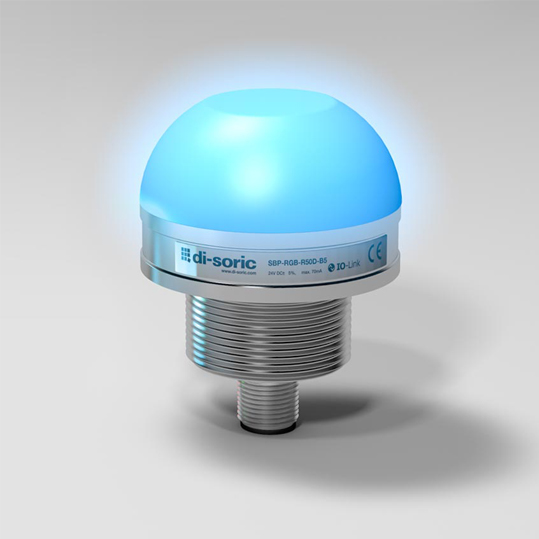

SBP-RGB
High-efficiency and multifunctionality:
The dome-shaped signal light from di-soric offers 360° visibility, a nearly endless number of colors, individual brightness and blinking/flashing behaviors - all functions can be configured through IO-Link.
The compact design and high degree of protection (IP67) enable use in harsh ambient conditions.
IO-Link features
Easy configuration of individual functions via IO-Link process data:
Nearly endless number of possible colors
Adjustable brightness
Operating modes: Constant, blinking and flashing
Reduced costs:
Just one device for every requirement
So less inventory is needed
Highlights
Can be configured during operation via IO-Link process data
Up to 8 predefined or user-defined color configurations can be displayed through 3 digital trigger inputs
Optimal display of status
Diffuse, very homogeneous light field
IP67 as a robust (impact-resistant) design
Easy installation and commissioning
4 REASONS
TO CHOOSE OUR LIGHTS WITH IO-LINK
IO-Link is a worldwide communication standard according to IEC 61131-9. Signal lighting and signal lights with an immense range of functions and capabilities become intelligent and active process devices in the field with IO-Link. Production processes thereby become more flexible, more transparent, more efficient and more cost-efficient. IO-Link transforms signal lighting and signal lights into digital products and enables Industry 4.0 systems designs.
Customized lighting
Above and beyond the preset colors, you can customize colors individually in IO-Link. The machines and products can be illuminated with freely selectable colors and brightness levels.
Ready-to-use
Can be used out-of-the-box through three digital trigger inputs.
Configure with IO-Link
Individual color requirements are configured on-the-fly easily and intuitively via IO-Link process data.
Reduced costs
Thanks to a virtually infinite number of possible combinations of colors, brightness levels and flash patterns, just one device can meet every individual requirement.
